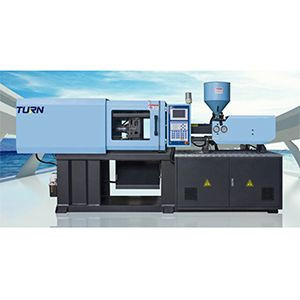

    Good Price 40t Injection Molding Machines

    Product Review | Top Rated

    • Color: Default Color
    • Size: Default Size
    • Port: China
    • Lead Time: Default Usage
    • Packaging: Default Type
    • MOQ: 99.9% Type
    Get a Quote

    Description:

    Quick Details
    Condition:
    New
    Style:
    HORIZONTAL
    Distance between Tie Bars(Width)(mm):
    240 mm
    Distance between Tie Bars(Height)(mm):
    260 mm
    Plastic Processed:
    PP, PC, ABS, pet, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
    Clamping Force (kN):
    400 kN
    Ejector Stroke(mm):
    60 mm
    Ejector Force(kN):
    25 kN
    Theoretical Shot Volume(cm³):
    64 cm³
    Injection Rate (g/s):
    40 g/s
    Injection Weight (g):
    47 g
    Screw Speed (rpm):
    1 - 200 rpm
    Screw diameter (mm):
    27 mm
    Screw L/D Ratio:
    20.7
    Distance between Tie Bars:
    260X240mm
    Weight (KG):
    1800
    Machine Type:
    HYDRAULIC
    Place of Origin:
    China
    Open Stroke(mm):
    240 mm
    Model Number:
    SK40
    Brand Name:
    SHUANG KE
    Automatic:
    YES
    Power (kW):
    7 kW
    Warranty:
    1 YEAR
    After-sales Service Provided:
    Video technical support, Free spare parts, Online support
    Key Selling Points:
    energy saving
    Applicable Industries:
    Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining
    After Warranty Service:
    Video technical support, Online support, Spare parts, Field maintenance and repair service
    Local Service Location:
    none
    Showroom Location:
    none
    Marketing Type:
    Hot Product 2019
    Machinery Test Report:
    not available
    Video outgoing-inspection:
    Provided
    Warranty of core components:
    6 months
    Core Components:
    Bearing
    Injection pressure:
    207.5MPa

    View File

    </div> </dd> </dl> </div> </div></div> </div> </div> </div> </div> </section> <div class=

    Turn Machine

    Core Offerings

    Turn Machine (Zhejiang) Co., Ltd
    Injection Molding Machine

    Our advanced injection molding machines are designed for high-precision manufacturing, ensuring consistent quality and efficiency in plastic production.

    Clamping System

    We provide robust clamping systems that securely hold molds in place during the injection process, enhancing the accuracy and durability of the final product.

    Stable Injection Device

    Our stable injection devices deliver precise and controlled plastic flow, minimizing defects and optimizing the production process.

    Hydraulic Unit

    The hydraulic units we offer ensure smooth and powerful operation of the molding machines, contributing to reliable and efficient production cycles.

    Electric Unit

    The hydraulic units we offer ensure smooth and powerful operation of the molding machines, contributing to reliable and efficient production cycles.
