| Products injection molding machine Good Quality Liquid Level Line Automatic Hollow Molding Machine
  • Good Quality Liquid Level Line Automatic Hollow Molding Machine
  • 382

Good Quality Liquid Level Line Automatic Hollow Molding Machine

Product Review | Top Rated

  • Color: Default Color
  • Size: Default Size
  • Port: China
  • Lead Time: Default Usage
  • Packaging: Default Type
  • MOQ: 99.9% Type
Get a Quote

Description:

Overview

Essential details
Condition:
New
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pump, PLC, Engine
Application:
Bottle
Plastic Processed:
PE, PE/PP, PP, PVC, EVA
Place of Origin:
ZHEJIANG
Brand Name:
TURN
Year:
new
Voltage:
220v/380V
Dimension(L*W*H):
3.5*2.1*2.3m
Clamping Force (kN):
65
PLC Brand:
Omron
Screw diameter (mm):
70 mm
Output (kg/h):
78 kg/h
Automation:
Automatic
Screw Heating Power(kW):
19 kW
Extruder Motor Power(kW):
18 kW
Mold Platen Size(Width)(mm):
150 mm
Mold Platen Size(Height)(mm):
350 mm
Air Pressure(MPa):
0.7 MPa
Air Comsumption(m³/min):
0.7 m³/min
Die Head Heating Power(kW):
18.5 kW
Accumulator Capacity(L):
5 L
Power (kW):
18.5
Weight (T):
4.3
Key Selling Points:
Competitive Price
Warranty:
1.5 years
Applicable Industries:
Manufacturing Plant
Showroom Location:
Russia, Viet Nam, Brazil, Egypt, Algeria, South Africa, Colombia, Sri Lanka
Marketing Type:
New Product 2020
Packaging & delivery
Lead time:
Quantity(units) 1 - 1 >1
Lead time (days) 15 To be negotiated

00:37Product Description

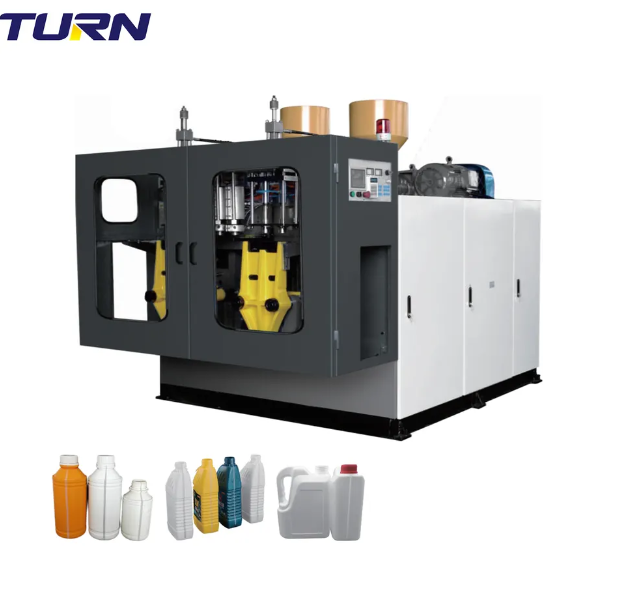

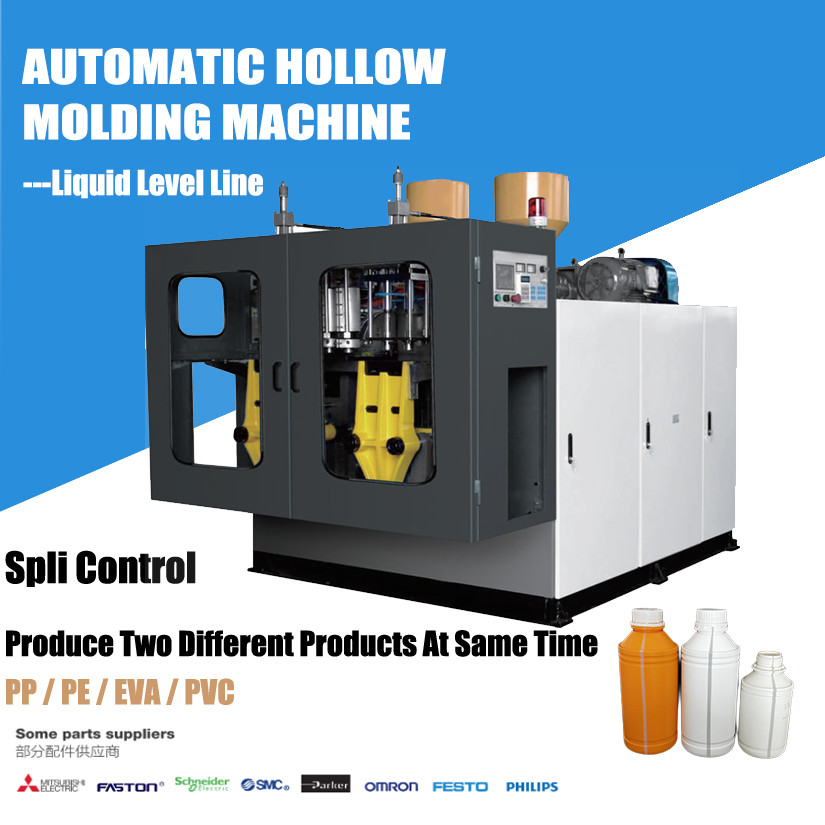

Automatic Hollow Molding Machine --- Liquid Level Line
●Serco motor hydraulic lock mold system, strong combined force, low energy consumption
●The mechanical structure is beautiful, high yield, fast and stable.
●Twin screw can produce products with Liquid level line.
Specification
ITEM
TURN-ZK1L
TURN-ZK2L
TURN-ZK5L
Raw material
PEPPPVCEVA
PEPPPVCEVA
PEPPPVCEVA
Diameter of screw
55mm
65mm
75mm
LD of screw
25:1
25:1
25:1
Extrusion power
11kw
15kw
18.5kw
Heating power
11kw
13kw
16kw
Heating zones
6 piece
8 piece
8 piece
Plasticizing capacity
60kg
70kg
85kg
Number of moulds
2 piece
2 piece
2 piece
Mould thickness
130-160mm
140-180mm
180-250mm
Open stroke
250mm
250mm
350mm
Mould length
100-300mm
120-320mm
150-350mm
Max.clamping force
4OKN
50KN
6OKN
Number of molding head
1-4 piece
1-4 piece
(Single/Double) piece
Pressure of air source
7bar
7bar
7bar
Air volume
0.4m/min
0.5m²/min
0.7m²/min
Water volume
16-25L/min
20-30L/min
30-45L/min
Weight
3.0T
4.0T
5.0T
Dimension(L×W×H)
2.8x1.8x2.3m
3.0x2.0x2.3m
3.5x2.1x2.3m

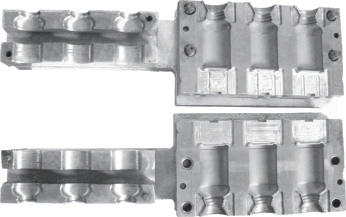

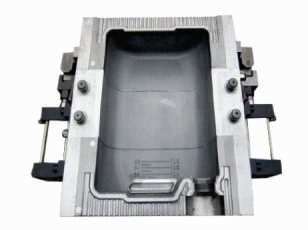

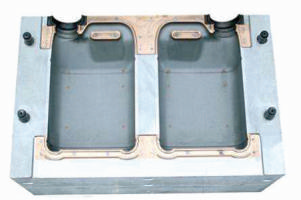

Mold & Accessories

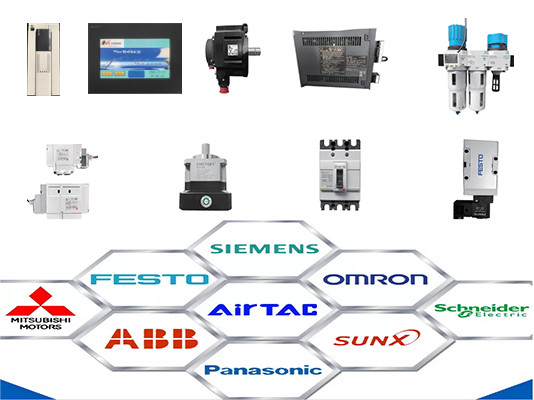

MAIN MECHANICAL PART
ITEM
BRAND
ADVANTAGE
SERVO DRIVE
Mitsubishi(Japan)
stable, efficient, energy-saving.
Taiwans Faston reducer
PHOTOELECTRIC SWITCH
Omron（Japan）
the control accuracy isaccurate
and the reaction speed is fast.
PROXIMITY SWITCH
RUBY INFRARED LAMP HEATING
Philips
strong penetrating power,uniform heating, high eficiency and energy saving40%.
air switches
Schneider(French )
Durable
contactors
switchpower
Man-machine interface control program
Mitsubishi(Japan)/
Siemens(Germany)
stable performance and simple operation
oil and water separator
FESTO(German )
switching speed, low falure rate, safe and
reliable operation.
action valve
SMC(Japan)
blow valve
Parker(USA)
American Parker high-pressure blow valve, high sensitivity , rapid blowing product molding. Action and blowing are divided into two parts to meet the needs of blowing bottles,different movements of different airpressure, to achieve high pressure blowing products.

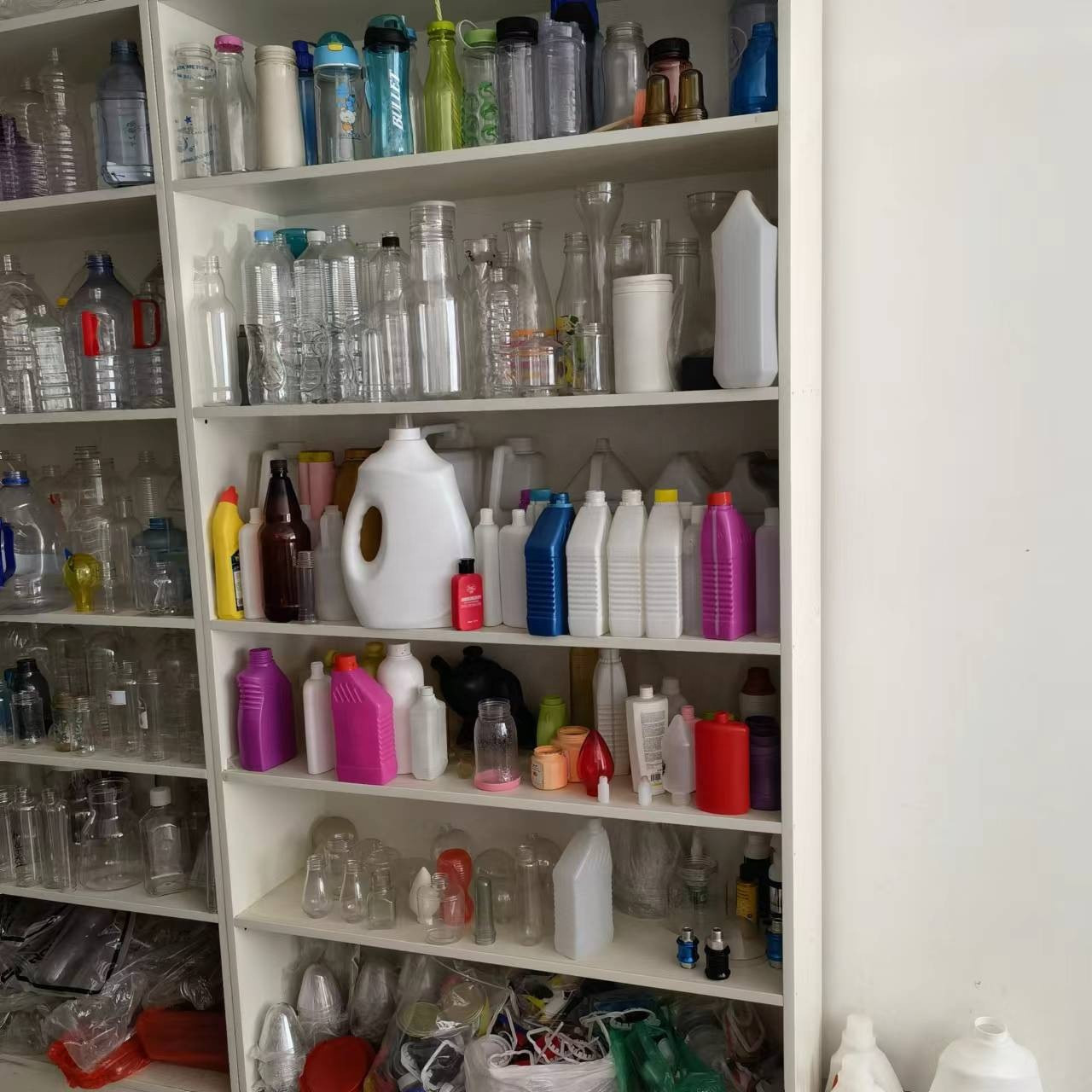

Sample

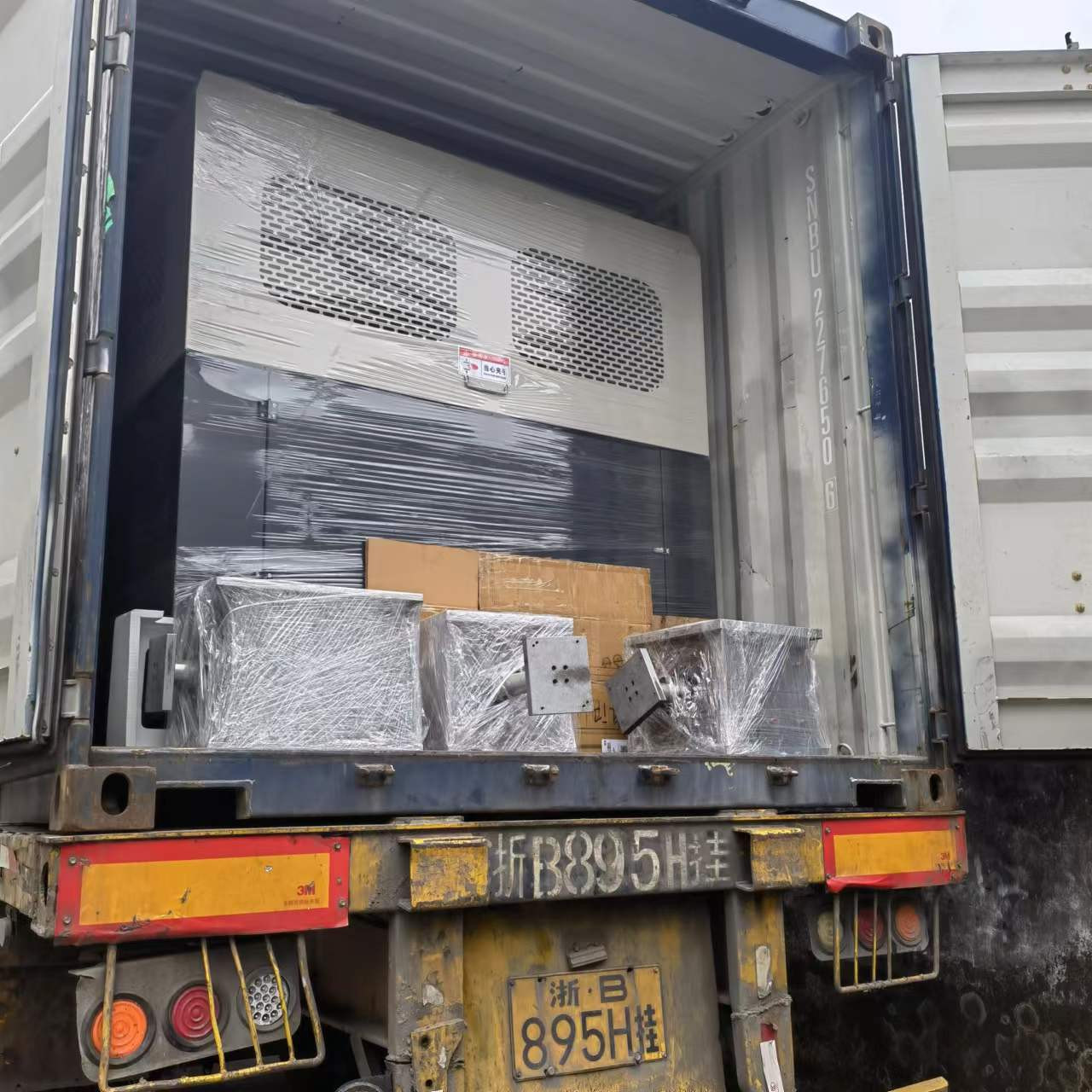

Packing & Delivery
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
