    HTY40 Low Cost Small Plastik Product Manufacturing Injection Molding Machine Machinery

    Product Review | Top Rated

    • Color: Default Color
    • Size: Default Size
    • Port: China
    • Lead Time: Default Usage
    • Packaging: Default Type
    • MOQ: 99.9% Type
    Get a Quote

    Description:

    Overview

    Essential details
    Plastic Processed:
    PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
    Condition:
    New
    Style:
    Horizontal
    Distance between Tie Bars(Width)(mm):
    240mm
    Distance between Tie Bars(Height)(mm):
    260mm
    Ejector Stroke(mm):
    60 mm
    Ejector Force(kN):
    25 kN
    Theoretical Shot Volume(cm³):
    64 cm³
    Injection Rate (g/s):
    40 g/s
    Machine Type:
    Hydraulic
    Injection Weight (g):
    47 g
    Screw Speed (rpm):
    1 - 200 rpm
    Screw diameter (mm):
    27 mm
    Screw L/D Ratio:
    20.7
    Distance between Tie Bars:
    260X240mm
    Weight (KG):
    1800 kg
    Place of Origin:
    Zhejiang, China
    Open Stroke(mm):
    240 mm
    Model Number:
    HTY40
    Brand Name:
    TURN
    Power (kW):
    7 kW
    Warranty:
    1 Year
    Key Selling Points:
    Energy saving
    Applicable Industries:
    Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining
    Showroom Location:
    Argentina, Sri Lanka, Kazakhstan, Uzbekistan
    Machinery Test Report:
    Not Available
    Video outgoing-inspection:
    Provided
    Warranty of core components:
    6 Months
    Core Components:
    Motor, Pump, PLC, Screw
    Injection pressure:
    207.5MPa
    shot volume:
    52cm3
    Max pump pressure:
    16Mpa
    Max.screw speed:
    200
    Automatic:
    Yes
    Clamping Force (kN):
    400 kN
    Marketing Type:
    Hot Product 2019
    Packaging & delivery
    Port
    Ningbo
    Picture Example:
    Lead time:
    Quantity(sets) 1 - 5 6 - 10 11 - 20 >20
    Lead time (days) 20 40 60 To be negotiated

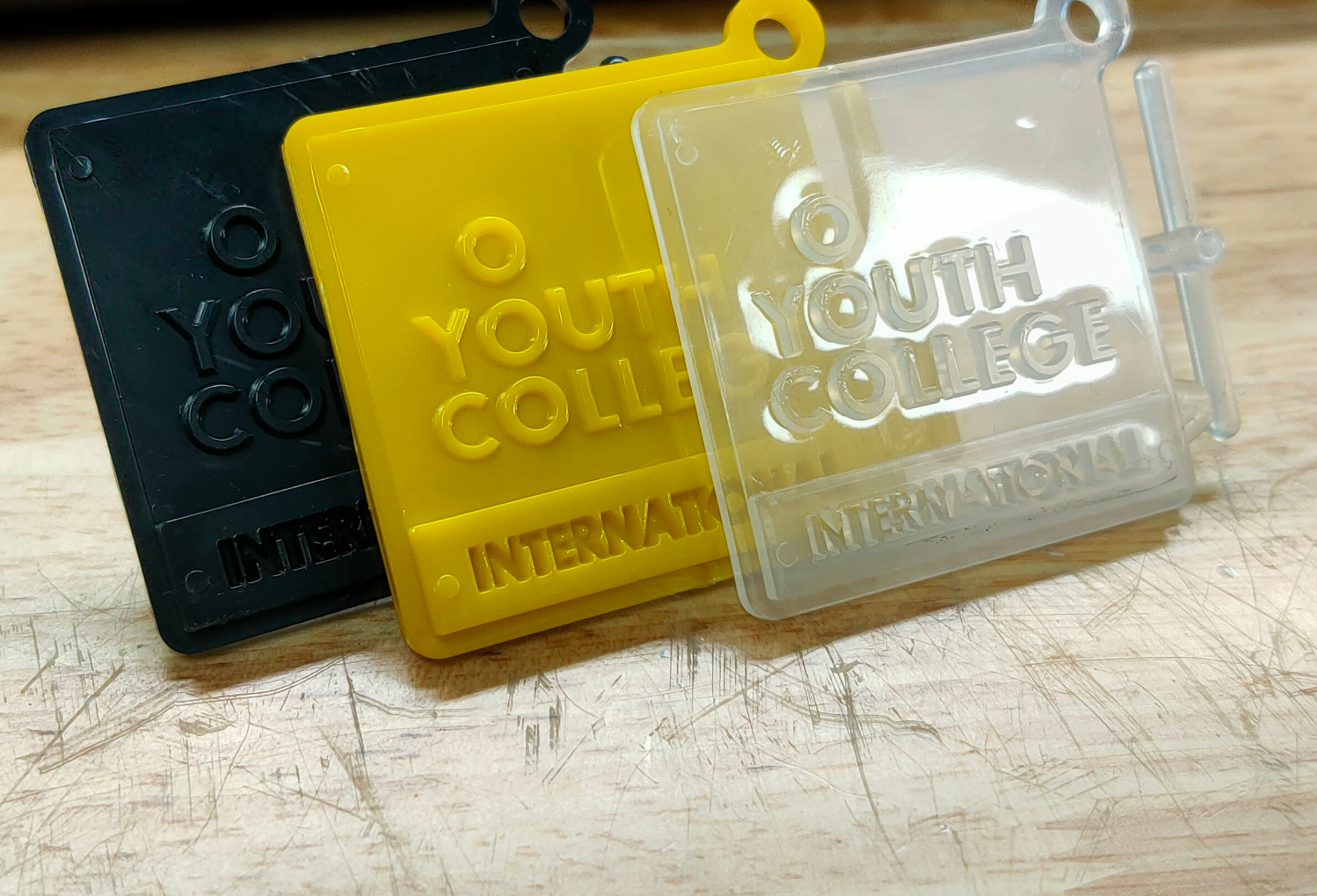

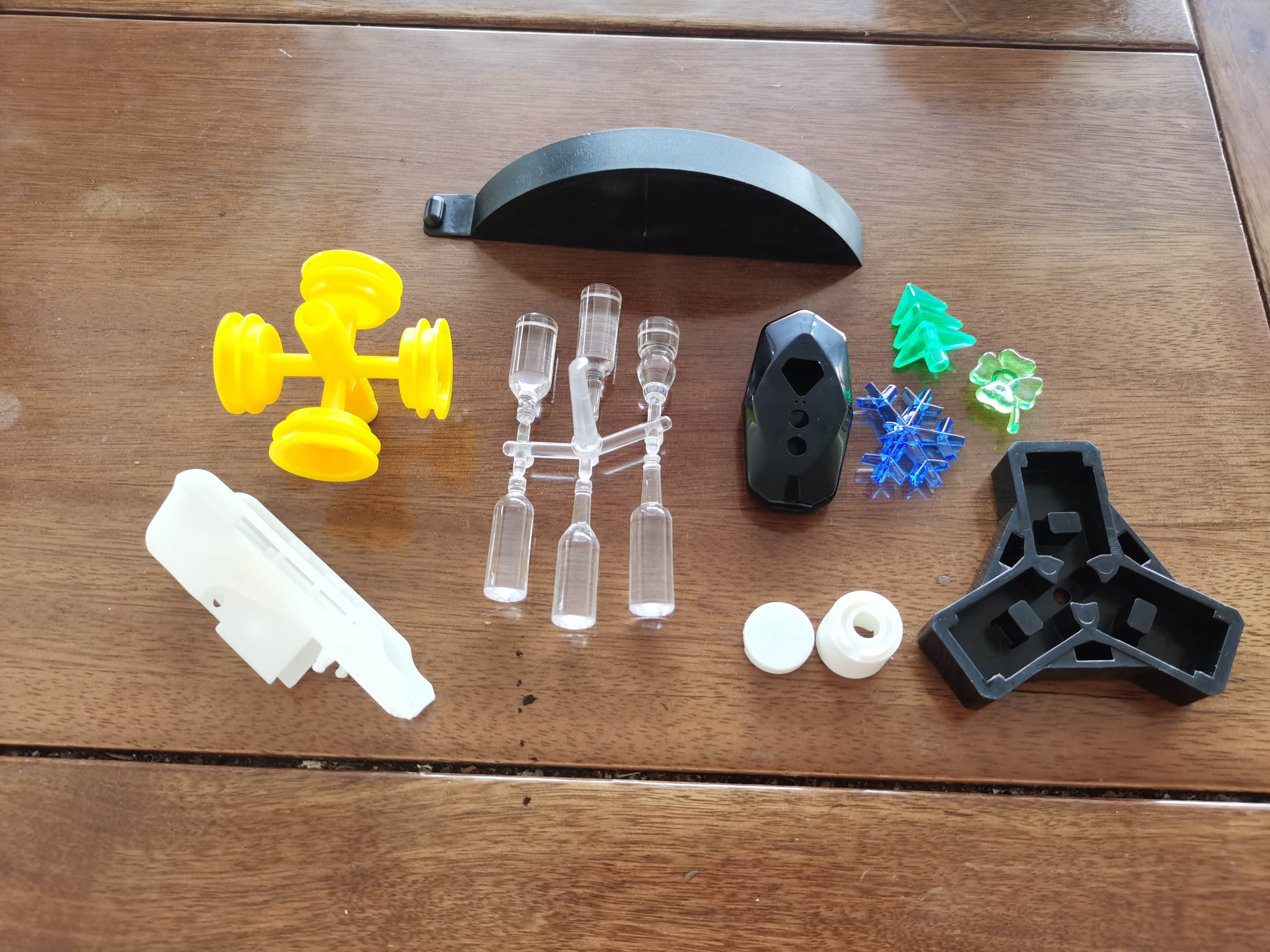

    Application
    Product Parameters

    INJECTION UNIT
    Screw diameter
    Injection weight(PS)
    Clamping force
    Open stroke
    Space between tie-bars (WxH)
    Mold height
    Machine weight
    mm
    g
    KN
    mm
    mm
    mm
    T
    HTY30
    A
    19
    20.6
    320
    155
    255x220
    80-260
    1.1
    B
    23
    27
    C
    25
    34
    HTY40
    A
    25
    43
    420
    245
    260x260
    100-300
    1.65
    B
    27
    50
    C
    30
    62
    HTY50
    A
    25
    51
    520
    270
    300x300
    100-340
    2.2
    B
    28
    64
    C
    32
    84
    HTY70
    A
    32
    102
    720
    300
    330x330
    130-360
    2.8
    B
    34
    116
    C
    36
    130
    HTY90
    A
    32
    105
    920
    330
    370x370
    150-400
    3.4
    B
    35
    126
    C
    38
    149
    HTY120
    A
    35
    175
    1200
    350
    410x410
    150-450
    3.6
    B
    38
    206
    C
    42
    252
    HTY150
    A
    38
    206
    1500
    400
    430x430
    160-480
    4
    B
    42
    252
    C
    45
    289
    HTY170
    A
    42
    283
    1700
    435
    480x480
    180-535
    6
    B
    45
    325
    C
    50
    402
    Product Description
    Features of Our Servo Injection Molding Machine
    * Double cylinder balanced injection system; * Multi-stage pressure &speed injection;
    * Back pressure adjustment device; * Low-pressure mould protection;
    * Single hydraulic core pulling and inserting; * Multiple hydraulic ejector knock-out;
    * Mechanical, electrical safety device; * Auto lubrication system;

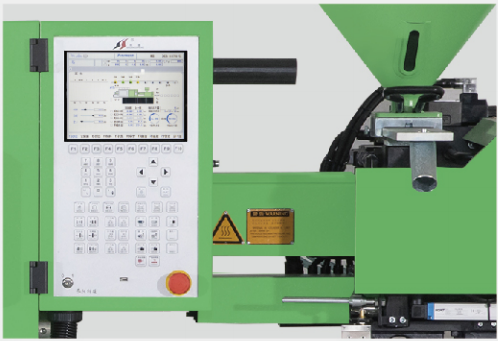

    * Hydraulic pressure full proportional control; * Computer control system;
    * Molding data memory system; * Automatic mould adjust function;
    * Energy-saving with servo motor;
    Save The Cooling Water
    No constant flow pump and speed set motor overflow heating.When the temperature of hydraulic oil is lower, the cooling wateris reduced greatly
    Low Noise
    The noise is below 78db. Servo motor has almost no noise when no movement of machine.
    High Precision High Response
    The pressure sensor and rotary encoder with high precision and high sensitvity achieve pressureflow closed-oop control allows the repeatprecision error to be less than 19%. lt only takes 0.05 second to reach the largest output power.

    Turn Machine

    Core Offerings

    Turn Machine (Zhejiang) Co., Ltd
    Injection Molding Machine

    Our advanced injection molding machines are designed for high-precision manufacturing, ensuring consistent quality and efficiency in plastic production.

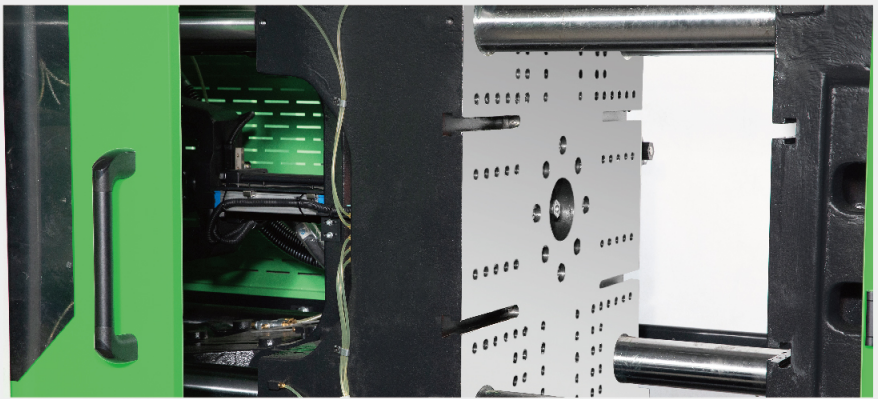

    Clamping System

    We provide robust clamping systems that securely hold molds in place during the injection process, enhancing the accuracy and durability of the final product.

    Stable Injection Device

    Our stable injection devices deliver precise and controlled plastic flow, minimizing defects and optimizing the production process.

    Hydraulic Unit

    The hydraulic units we offer ensure smooth and powerful operation of the molding machines, contributing to reliable and efficient production cycles.

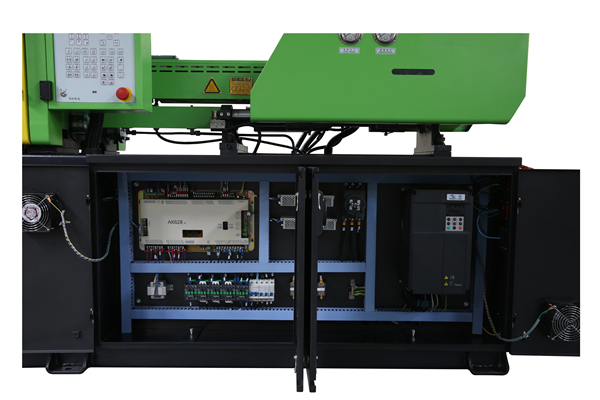

    Electric Unit
