    K230 HIGH Quality Low Cost Injection Molding Machine New

    Product Review | Top Rated

    • Color: Default Color
    • Size: Default Size
    • Port: China
    • Lead Time: Default Usage
    • Packaging: Default Type
    • MOQ: 99.9% Type
    Get a Quote

    Description:

    Overview

    Essential details
    Plastic Processed:
    PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
    Condition:
    New
    Style:
    Horizontal
    Distance between Tie Bars(Width)(mm):
    625mm
    Distance between Tie Bars(Height)(mm):
    575mm
    Mold Height(mm):
    250 - 680 mm
    Ejector Number:
    13
    Ejector Stroke(mm):
    150 mm
    Ejector Force(kN):
    49 kN
    Theoretical Shot Volume(cm³):
    412 cm³
    Injection Rate (g/s):
    393 g/s
    Machine Type:
    Hydraulic
    Injection Weight (g):
    375.2 g
    Screw Speed (rpm):
    1 - 350 rpm
    Screw diameter (mm):
    50 mm
    Screw L/D Ratio:
    20
    Distance between Tie Bars:
    625x575 mm
    Weight (KG):
    11000 kg
    Type:
    Preform Injection
    Place of Origin:
    Zhejiang, China
    Open Stroke(mm):
    550 mm
    Model Number:
    se-230
    Brand Name:
    Turn
    Power (kW):
    48.6 kW
    Warranty:
    1 Year
    Key Selling Points:
    Automatic
    Applicable Industries:
    Garment Shops, Building Material Shops, Food & Beverage Factory, Farms, Restaurant, Printing Shops, Construction works , Advertising Company
    Showroom Location:
    Egypt, Canada, Viet Nam, Russia, Spain, South Korea, Chile, Sri Lanka
    Machinery Test Report:
    Provided
    Video outgoing-inspection:
    Provided
    Warranty of core components:
    1 Year
    Core Components:
    Motor, Pump, Engine, Screw
    Injection rate:
    393cm3/s
    Marketing Type:
    New Product 2020
    Packaging & delivery
    Lead time:
    Quantity(sets) 1 - 1 >1
    Lead time (days) 30 To be negotiated

    Product Description



    Fast and smooth mold movement, high torque, less resistance. Clamping servo motor connects ball screw, flexible operation and simply maintenance. High- quailty belt, warranty 10 years; superior rotating wheel, low inertia.



    Top responsibility servo motor and high torque ball screw is key element, origin Japan technology to keep advantage leading in the word, precise for mold movement.

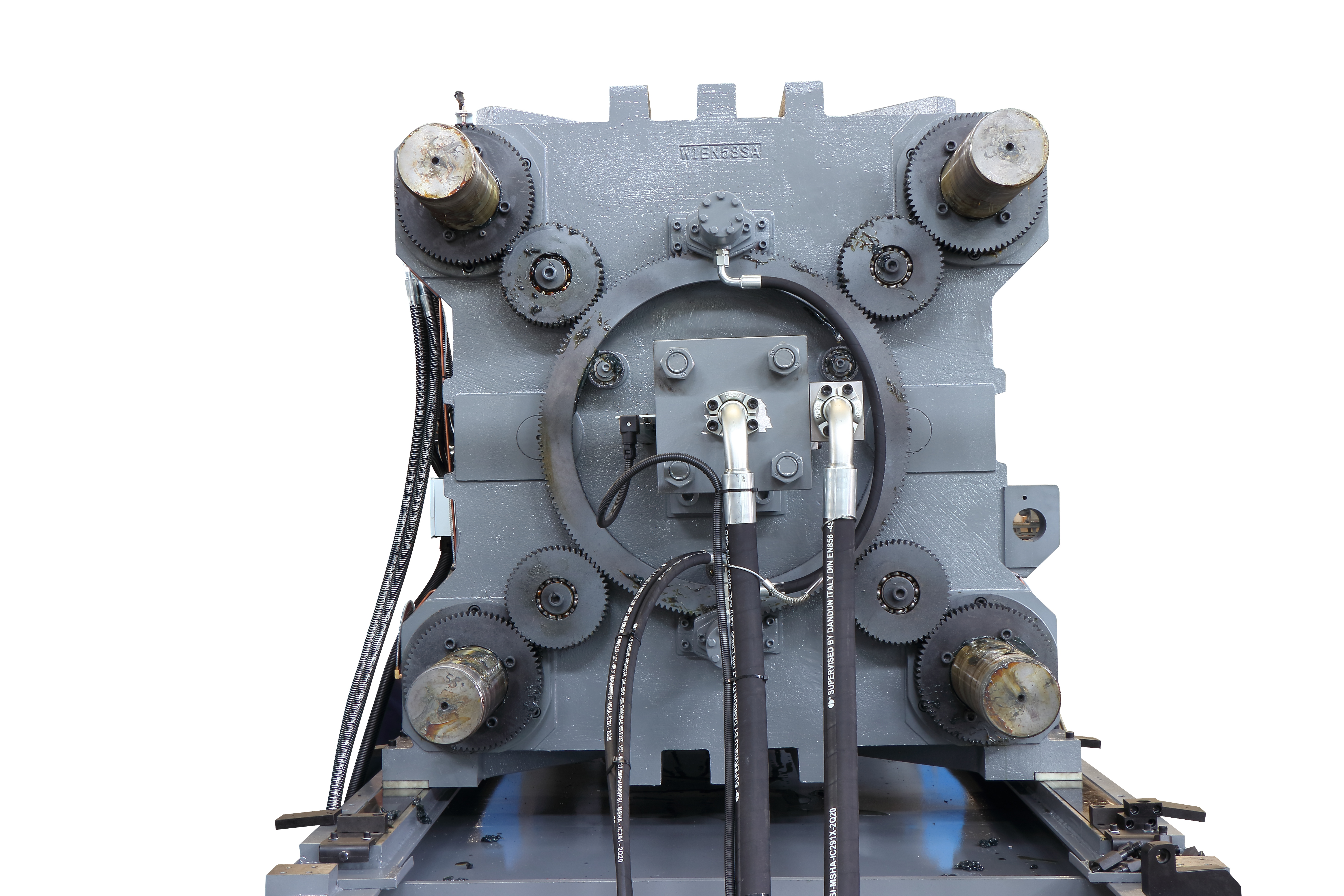

    T-slot & screw fifixation platen embedded mold locating ring design, high-standard clampling system reduces mold loss and makes more easy mold installation.



    Zero-resistance clamping injection guider structure, heavy loaded guider device supported by
    linear track, better wear resistance, lower friction and more smooth operation. Optimize mold
    structure, tie bar no touch with moving platen, no lubrication. The system has high rigidity and
    strength, guarantee the accuracy of platen parallel excellently.
