    Low Price Best Value High Quality Plastic Injection Molding Machine SK70 SERVO ENERGY SERIES

    Product Review | Top Rated

    • Color: Default Color
    • Size: Default Size
    • Port: China
    • Lead Time: Default Usage
    • Packaging: Default Type
    • MOQ: 99.9% Type
    Get a Quote

    Description:

    Overview

    Essential details
    Plastic Processed:
    PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP
    Condition:
    New
    Style:
    Horizontal
    Distance between Tie Bars(Width)(mm):
    330mm
    Distance between Tie Bars(Height)(mm):
    330mm
    Ejector Stroke(mm):
    80 mm
    Ejector Force(kN):
    31 kN
    Theoretical Shot Volume(cm³):
    142.5 cm³
    Injection Rate (g/s):
    74 g/s
    Machine Type:
    Hybrid
    Injection Weight (g):
    11 g
    Screw diameter (mm):
    34 mm
    Screw L/D Ratio:
    20.9
    Distance between Tie Bars:
    330X330
    Weight (KG):
    2500
    Place of Origin:
    China
    Open Stroke(mm):
    300 mm
    Model Number:
    SK70
    Brand Name:
    TURN
    Power (kW):
    15 kW
    Warranty:
    1 Year
    Key Selling Points:
    Energy saving
    Applicable Industries:
    Hotels, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Food & Beverage Shops, Advertising Company
    Showroom Location:
    Argentina, Chile, Colombia, Sri Lanka
    Machinery Test Report:
    Provided
    Video outgoing-inspection:
    Provided
    Warranty of core components:
    1 Year
    Core Components:
    Bearing, Motor, Pump, PLC, Screw
    Injection pressure:
    190
    shot weight:
    115.6
    Opening storke:
    300
    brand name:
    turn
    screw diameter:
    20
    Clamping Force (kN):
    700 kN
    After-sales Service Provided:
    Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
    After Warranty Service:
    Video technical support, Online support, Spare parts, Field maintenance and repair service
    Local Service Location:
    Brazil, Australia, Argentina, Chile, Sri Lanka
    Marketing Type:
    New Product 2020
    Packaging & delivery
    Port
    Ningbo, Zhejiang Province
    Lead time:
    Quantity(sets) 1 - 10 >10
    Lead time (days) 20 To be negotiated

    00:1
    Product Description

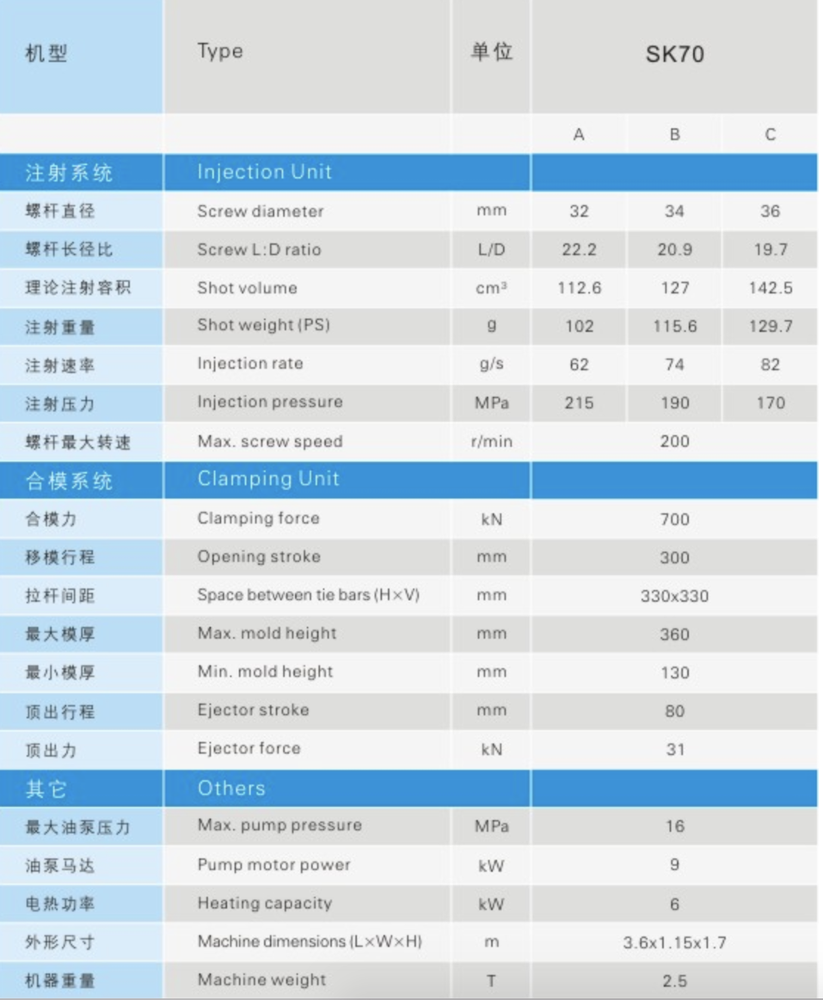

    Products Description
    Injection Unit




    Screw diameter
    mm
    32
    34
    36
    Screw L:D ratio
    L/D
    22.2
    20.9
    19.7
    Shot volume
    cm3
    112.6
    127
    142.5
    shot weight(PS)
    g
    102
    115.6
    129.7
    injection rate
    g/s
    62
    74
    82
    injection pressure
    MPa
    215
    190
    170
    Max.screw speed
    r/min
    200
    Clamping Unit


    Clamping force
    kN
    700

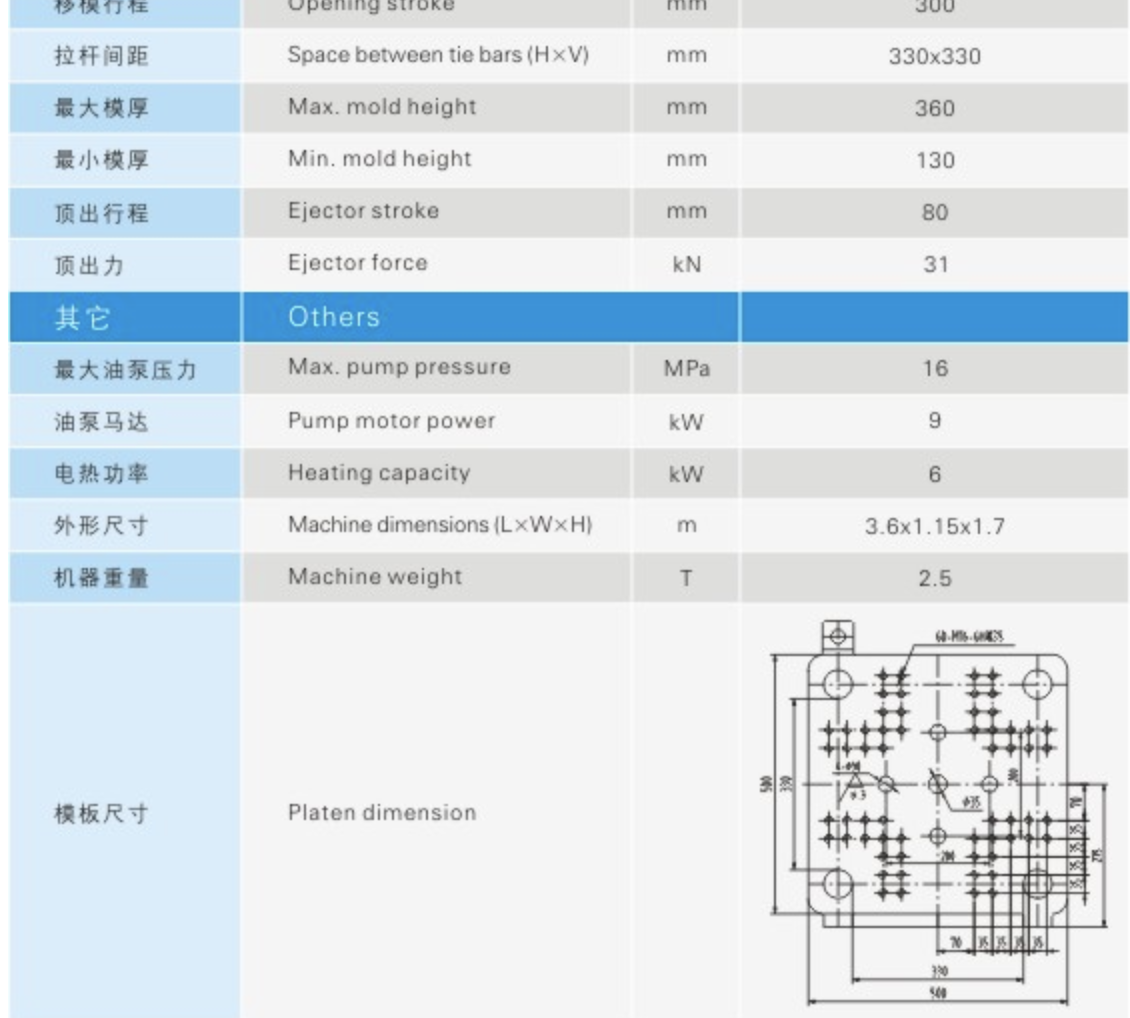

    Opening stroke
    mm
    300
    Space between tie bars(H×V)
    mm
    330×330
    Max.mold height
    mm
    360
    Min.mold height
    mm
    130
    Ejector stroke
    mm
    80
    Ejector force
    kN
    31
    Others


    Max.pump pressure
    MPa
    16
    Pump motor power
    kW
    9
    Heating capacity
    kW
    6
    machine dimensions(L×W×H)
    m
    3.6×1.15×1.7
    machine weight
    T
    2.5
