| Products injection molding machine PP Semi- automatic pet plastic bottle blowing blow moulding machine factory price bottle blow moulding
  • PP Semi- automatic pet plastic bottle blowing blow moulding machine factory price bottle blow moulding
  • 381

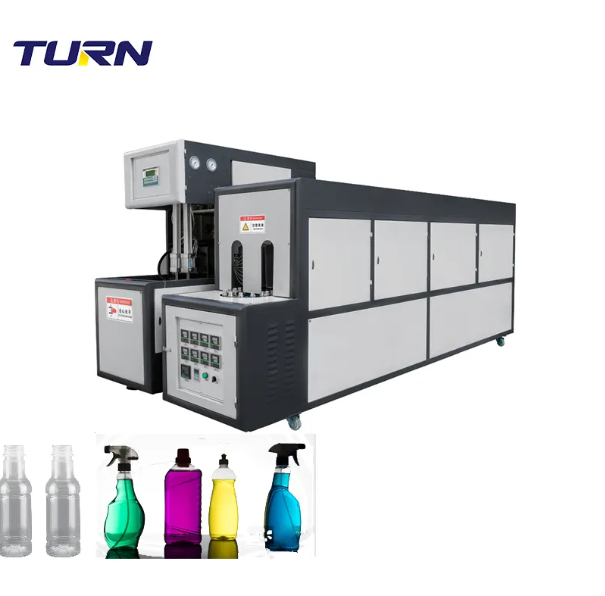

PP Semi- Automatic Pet Plastic Bottle Blowing Blow Moulding Machine Factory Price Bottle Blow Moulding

Product Review | Top Rated

  • Color: Default Color
  • Size: Default Size
  • Port: China
  • Lead Time: Default Usage
  • Packaging: Default Type
  • MOQ: 99.9% Type
Get a Quote

Description:

Overview

Essential details
Plastic Processed:
PET, HDPE/PP, PE, PE/PP, LDPE, HDPE, PP
Max.Bottle Height(mm):
410 mm
Neck Diameter(mm):
38 mm
Max.Bottle Diameter(mm):
125 mm
Bottle Volume(ml):
2000 ml
Condition:
New
Application:
Bottle
Blow Moulding Type:
Stretch Blow Moulding
Place of Origin:
ZHE
Brand Name:
TURN
Year:
new
Voltage:
220v/380V
Dimension(L*W*H):
2.15*1.1*1.15
PLC Brand:
Omron
Weight (KG):
200 KG
Automation:
Automatic
Warranty:
1.5 years
Key Selling Points:
Competitive Price
Showroom Location:
Russia, Viet Nam, Brazil, Egypt, Algeria, South Africa, Colombia, Sri Lanka
Applicable Industries:
Manufacturing Plant
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pump, PLC, Engine
Marketing Type:
New Product 2020
Packaging & delivery
Lead time:
Quantity(units) 1 - 1 >1
Lead time (days) 15 To be negotiated

Product Description
Automatic Drink Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
The use of automatic conveying of preforms control methods, for enterprises to reduce personnel, reduce costs, improvequality, increase profits.
MAIN MECHANICAL PART
ITEM
BRAND
ADVANTAGE
SERVO DRIVE
Mitsubishi(Japan)
stable, efficient, energy-saving.
Taiwans Faston reducer
PHOTOELECTRIC SWITCH
Omron（Japan）
the control accuracy isaccurate
and the reaction speed is fast.
PROXIMITY SWITCH
RUBY INFRARED LAMP HEATING
Philips
strong penetrating power,uniform heating, high eficiency and energy saving40%.
air switches
Schneider(French )
Durable
contactors
switchpower
Man-machine interface control program
Mitsubishi(Japan)/
Siemens(Germany)
stable performance and simple operation
oil and water separator
FESTO(German )
switching speed, low falure rate, safe and
reliable operation.
action valve
SMC(Japan)
blow valve
Parker(USA)
American Parker high-pressure blow valve, high sensitivity , rapid blowing product molding. Action and blowing are divided into two parts to meet the needs of blowing bottles,different movements of different airpressure, to achieve high pressure blowing products.
Specification
Main Items
ITEM
MQ-PP28C2
MQ-PP28C4
MQ-28C2
MQ-28C4
MQ-32C2
MQ-32C4
Bottle blowing machine
Container volume
2L
2L
2L
2L
3L
3L

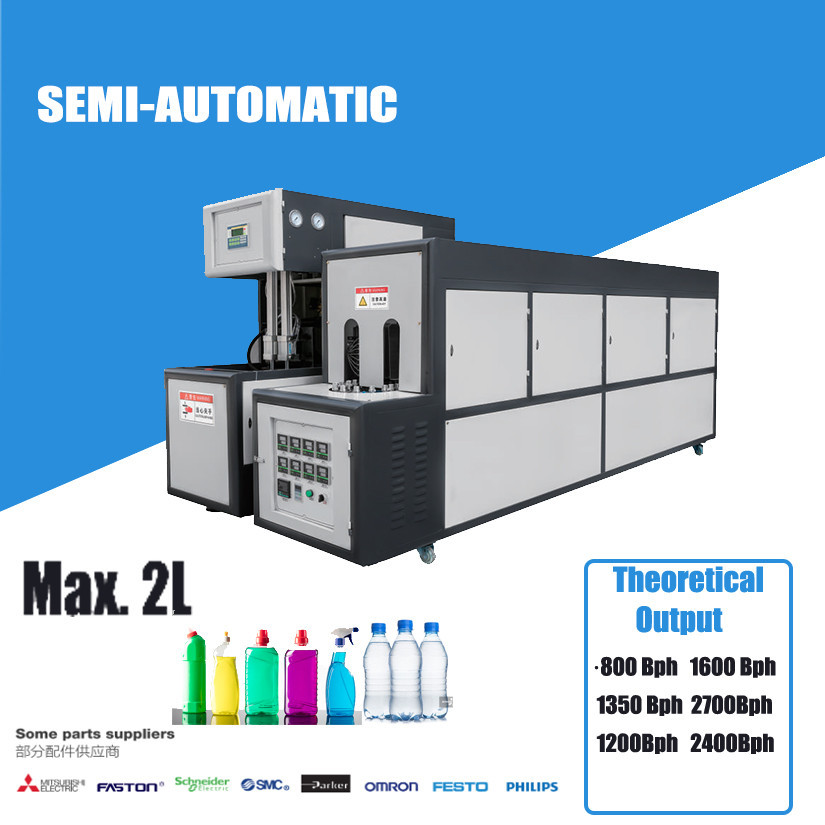

Theroretical output
800 Bph(")
1600 Bph(*)
1350 Bph(*)
2700 Bph(*)
1200 Bph(*)
2400 Bph(*)
Mold Opening Stroke
145mm
145mm
145mm
145mm
165mm
165mm
Max thickness of mold
220mm
220mm
200mm
200mm
220mm
220mm
Max container height
410mm
410mm
360mm
360mm
410mm
410mm
Max container diameter
105mm
105mm
105mm
105mm
125mm
125mm
Dimensions
(L×W×H)
1.6×0.7×1.7m
1.6×0.7×1.7m
1.6×0.7×1.7m
1.6×0.7×1.7m
1.6×0.7×1.7m
1.6×0.7×1.7m
Heating
voltage/frequency
380v/50-60Hz
Heating power
24kw
36kw
12kw
16kw
12kw
16kw
Cariage unit
168
228
72
96
72
96
Dimensions(L×W×H)
3.6×0.8×1.5m
4.9×0.8×1.5m
1.8×0.6×1.5m
2.3×0.6×1.5m
1.8×0.6×1.5m
2.3×0.6×1.5m
High-
air
Compressor
Air Volume
0.7L/min
1.2L/min
0.7L/min
1.2L/min
0.7L/min
1.2L/min
Working pressure
30bar
Power
7.5kw
15kw
7.5kw
15kw
7.5kw
15kw
Dimensions(L×W×H)
1.58×0.8×1.15m
2.15×1.1×1.15m
1.58×0.8×1.15m
2.15×1.1×1.15m
1.58×0.8×1.15m
2.15×1.1×1.15m
