| Products plastic injection molding machine TL-7T Mini Full Electric Injection Molding Machine with high speed injection volume18cm3
  • TL-7T Mini Full Electric Injection Molding Machine with high speed injection volume18cm3
  • TL-7T Mini Full Electric Injection Molding Machine with high speed injection volume18cm3
  • TL-7T Mini Full Electric Injection Molding Machine with high speed injection volume18cm3
    • 381

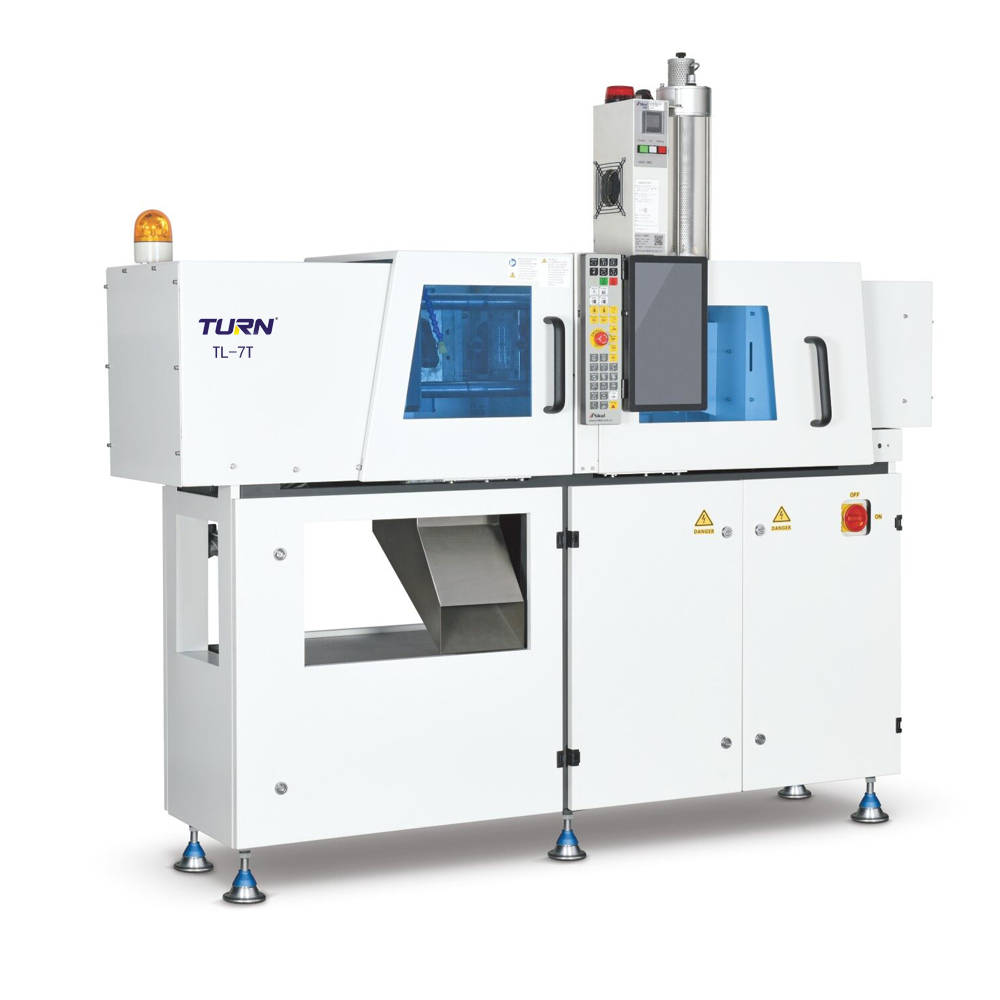

    TL-7T Mini Full Electric Injection Molding Machine With High Speed Injection Volume18cm3

    Product Review | Top Rated

    • Color: Default Color
    • Size: Default Size
    • Port: China
    • Lead Time: Default Usage
    • Packaging: Default Type
    • MOQ: 99.9% Type
    Get a Quote

    Description:

    Product Description
    Full servo high speed communication "MECHATROLINK-III” control cycle is 125um.

    Equipped with industry computer, more intelligent operation of Chinese and English interface, internal clamp operation steps and
    video.

    5 sections PID control temperature zone, 2 sets of mold temperature control function.

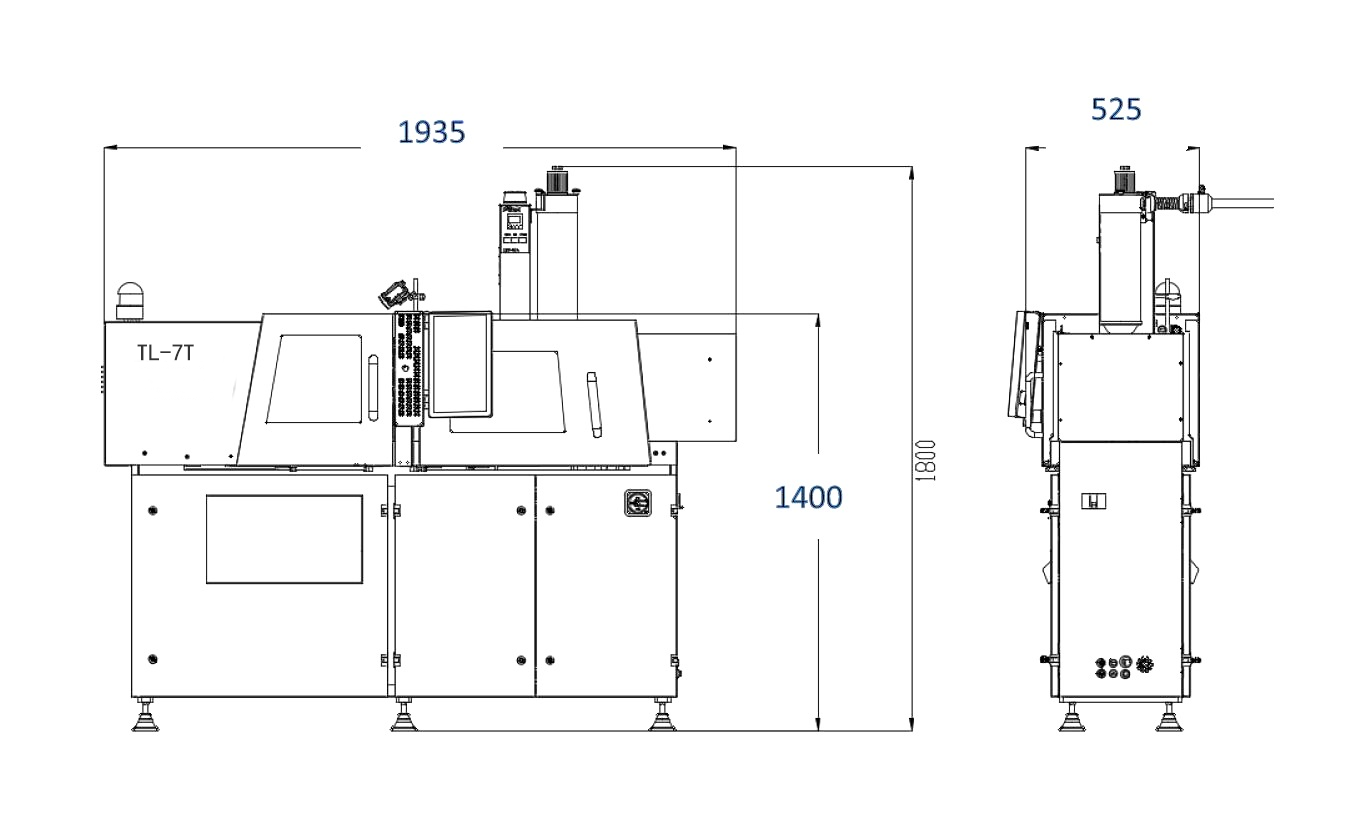

    Specification
    item
    value
    Plastic Processed
    PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
    Condition
    New
    Style
    Horizontal

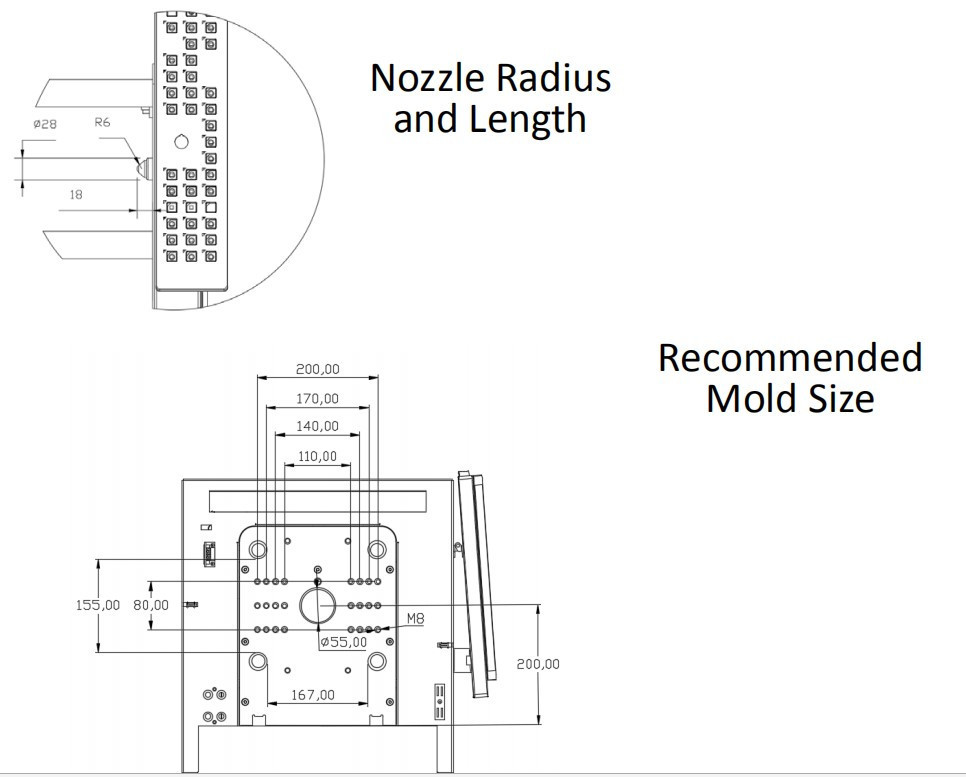

    155mm

    167mm
    Mold Height(mm)

    Ejector Stroke(mm)
    80mm
    Ejector Force(kN)
    5.5kN
    Theoretical Shot Volume(cm³)
    16cm³
    Injection Rate (g/s)
    330g/s
    Machine Type
    Electric
    Screw diameter (mm)
    14mm
    Weight (KG)
    750
    Type
    Tube Head Injection
    Place of Origin
    China

    Zhejiang
    Open Stroke(mm)
    135mm
    Model Number
    TL-7T
    Brand Name
    TURN
    Certification
    CE
    Power (kW)
    3.5kW
    Warranty
    1 Year

    Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
    Key Selling Points
    Low Maintenance Cost
    Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    After Warranty Service
    Video technical support, Online support, Spare parts, Field maintenance and repair service
    Local Service Location
    Viet Nam, Peru, Indonesia, Mexico, Thailand, Argentina, Chile, Sri Lanka
    Showroom Location
    Viet Nam, Mexico, Argentina, Chile, Colombia, Sri Lanka
    Marketing Type
    New Product 2020
    Machinery Test Report
    Provided
    Video outgoing-inspection
    Provided
    Warranty of core components
    1 Year
    Core Components
    Bearing, Motor, Pump, Gear, PLC, Screw
    Product name
    Plastic Injection Moulding Machine
    Automatic
    Yes
    Clamping Force (kN)
    79
    Company Profile
    Turn Machine(ZheJiang)Co.,LTD is established in Nov,2015.which locates in Ningbo,China,1 hour away from Shanghai.We are ISO,CE certified facilities.

    Turn offer comprehensice injection molding solutions of product design,project management.installation,commissioning and after service.

    Turn provides customized service according to customersneeds,containing injection molding equipment&auxiliary equipment&auxiliary equipment development,mold design,automation solution,manufacturing and on-site service.

    Turn projects are widely applied in medical appliance ,auto parts,packaging,electronics products,optical elements,house ware ,building components,etc.
